Wiper Motor For Split Window Bus 1966-1967

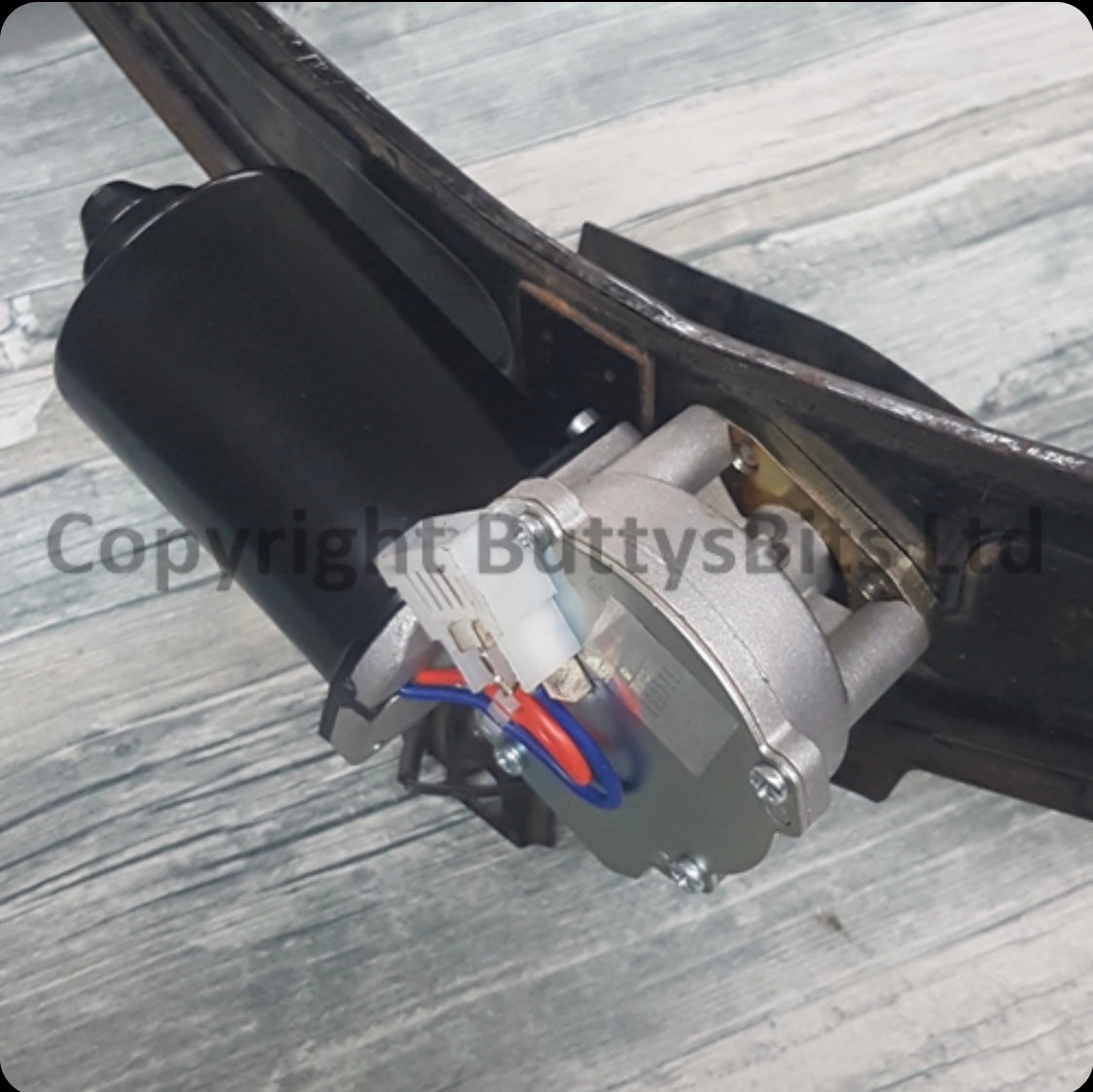

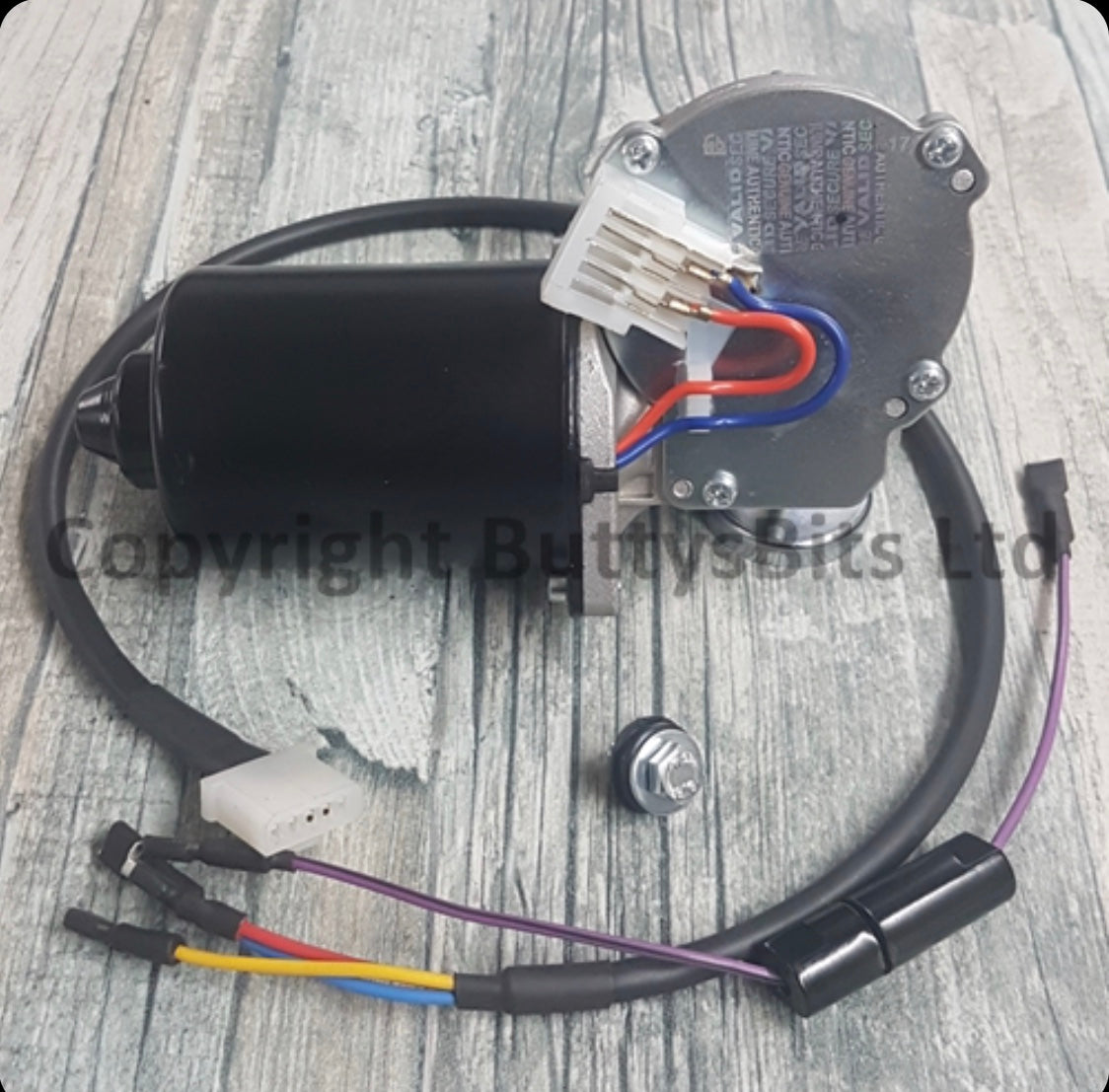

This is a direct fit replacement wiper motor for 1966 to 1967 models .THIS MOTOR BOLTS INTO YOUR ORIGINAL SETUP AND IS JUST A MOTOR SWAP , 12v with 2 speed loom , also self park function , all you will need to do is remove your wiper assembly then bolt this in and fit the main drive mechanism onto the output shaft and away you go , kit comes all assembled ready to go . Loom plugs into the white socket on the motor . There is an earth cable that goes from the motor and connects onto the main motor frame mounting bolt .

Then connect the blue and yellow wires to the switch that you used before . The purple wire is the main power feed and goes to the same place as the previous setup.

Nothing changes except the motor .

Also comes with a rubber grommet that fits into the motor frame to give a little more sound deadening .
